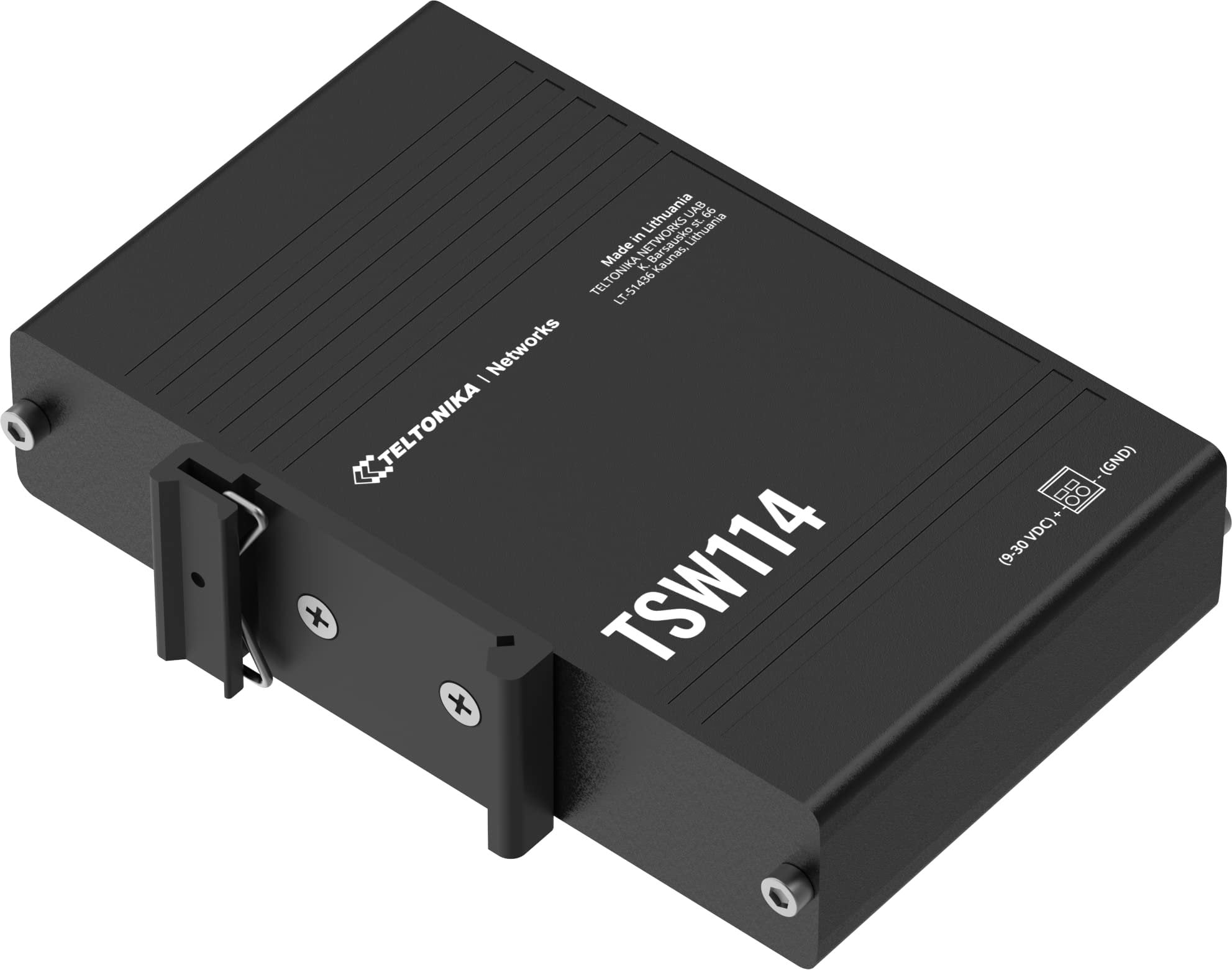

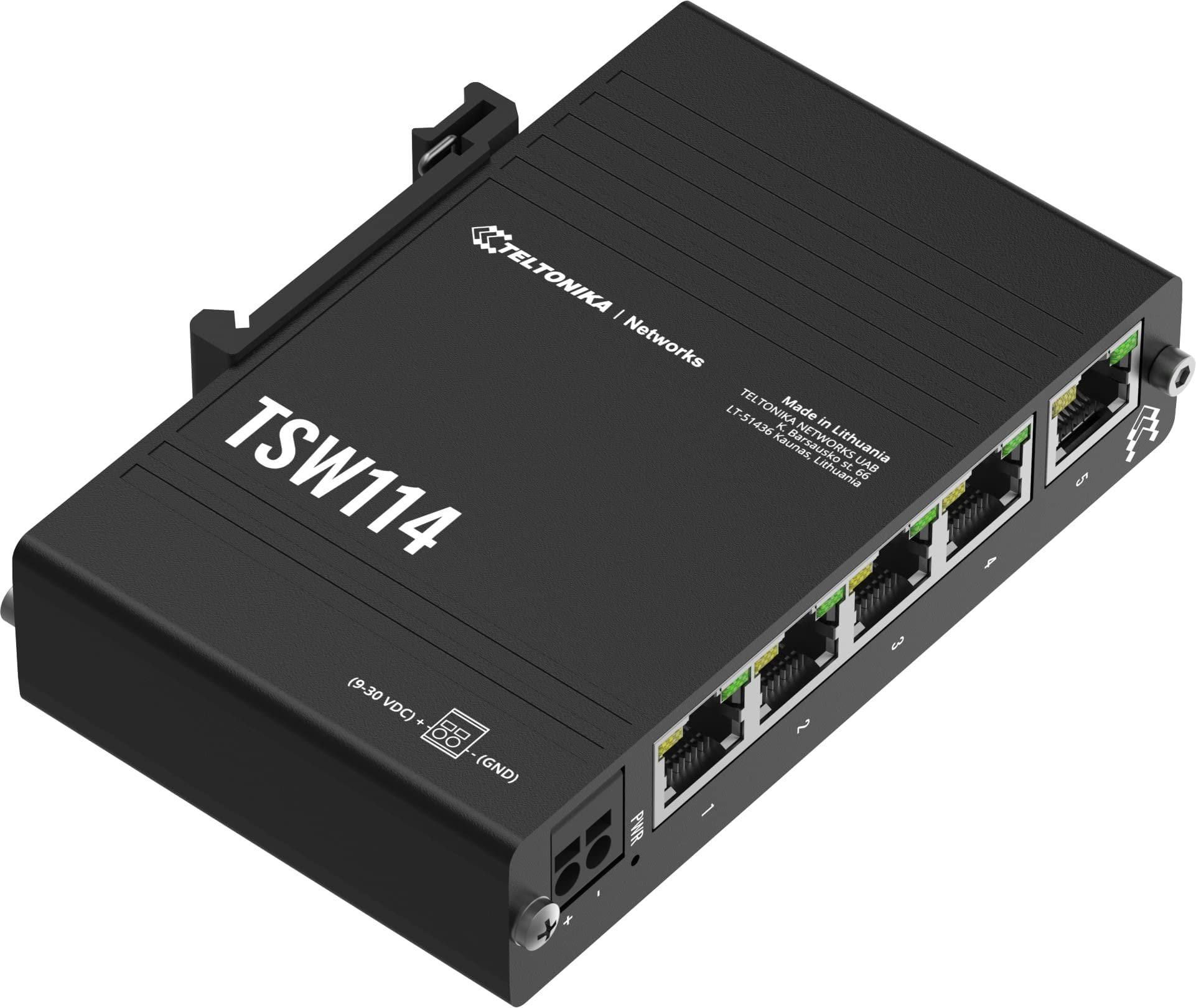

Teltonika TSW114000000 Model TSW114 DIN Rail Switch, Black; Integrated DIN Rail Bracket; 5X Ethernet Ports; Plug-N-Play; Aluminum Housing; Non-Blocking Bandwidth up to 10 Gbps; PSU Not Included
Product details
| Management number | 238178780 | Release Date | 2026/07/11 | List Price | US$20.80 | Model Number | 238178780 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Teltonika TSW114000000 Model TSW114 DIN Rail Switch, Black; Integrated DIN Rail Bracket; 5x Ethernet Ports; Plug-N-Play; Aluminum Housing; Non-blocking Bandwidth up to 10 Gbps; PSU Not Included sold separately<br><br> TSW114 is an affordable way to simplify your connectivity with its plug-n-play nature. 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices. Compact size, front-facing ports, and an integrated DIN rail bracket enable easy installation across many industrial environments and especially control cabinets<br><br> Key Features:<br> - PSU not included sold separately<br> - 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices<br> - Integrated DIN rail bracket and front-facing ports<br> - 40 to 75 degrees Celsius operating temperature<br> - Rugged anodized aluminum housing that fits in your pocket<br> - PLUG-N-PLAY<br> - 9-30V, Wide range of supported power supply voltages<br><br> Specifications:<br><br> Performance:<br> - Bandwidth Non-blocking: 10 Gbps<br> - Packet buer: 128 KB<br> - MAC address table size: 2K entries<br> - Jumbo frame support: 9216 bytes<br><br> Power:<br> - Connector: 2-pin industrial DC power socket<br> - Input voltage range: 9 - 30 VDC<br> - PoE passive: Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards<br> - Power consumption: Idle: 0.3 W / Max: 2.3 W<br><br> Physical Interfaces:<br> - Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps<br> - Status LEDs: 1 x Power LED, 10 x LAN status LEDs<br> - Power: 1 x 2-pin industrial DC power socket<br> - Grounding: 1 x Grounding screw<br><br> Physical Specifications:<br> - Casing material: Anodized aluminum housing and panels<br> - Dimensions W x H x D: 4.45 x 1.07 x 3.16 inches<br> - Weight: 0.4 pounds</p>
- 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices

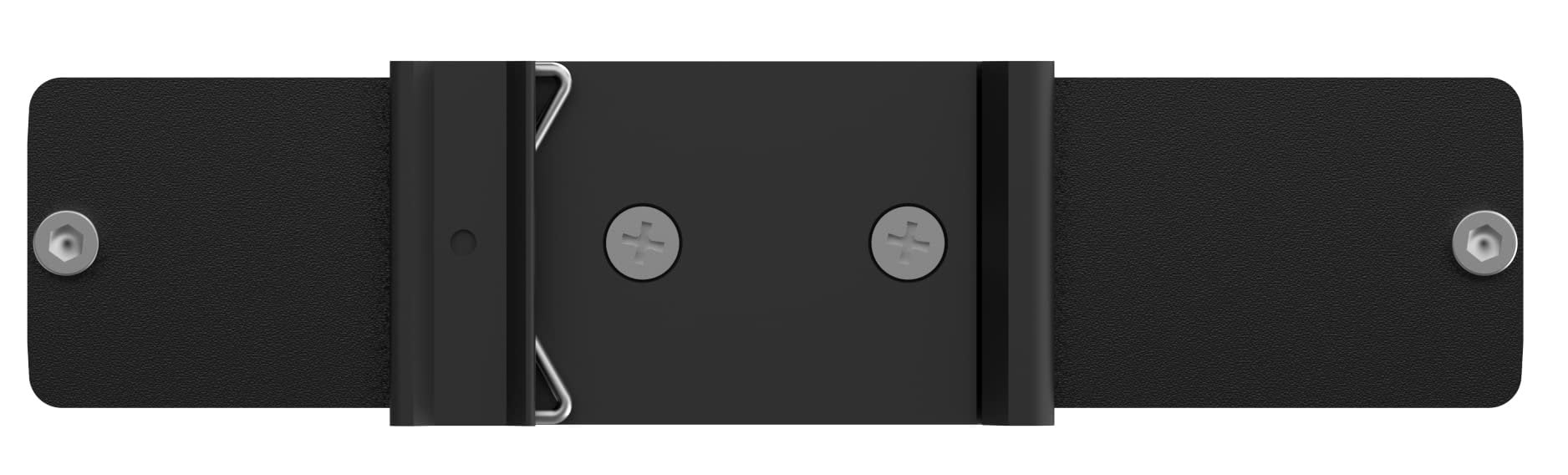

- Integrated DIN rail bracket and front-facing ports
- 40 to 75 degrees Celsius operating temperature
- Rugged anodized aluminum housing that fits in your pocket
- PLUG-N-PLAY
- 9-30V, Wide range of supported power supply voltages
- PSU Not included sold separately
| Brand | Teltonika |
|---|---|
| Network switch type | Unmanaged Switch |
| Number of ports | 5 |
| Transfer rate | 10 Gbps |
| LAN ports | 5 |

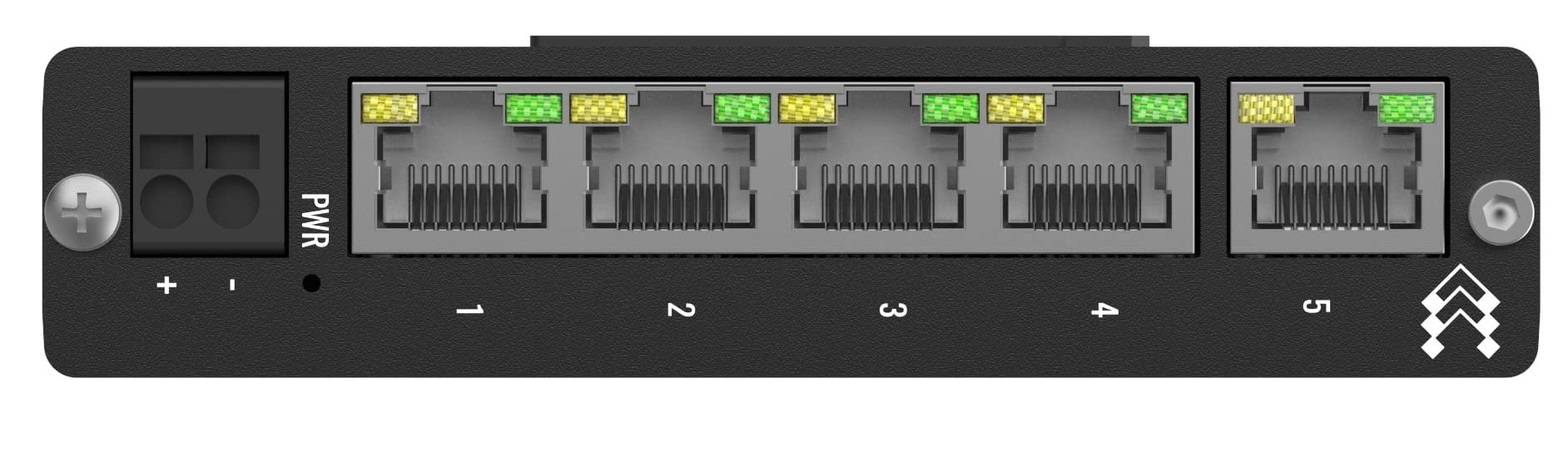

| Inputs/Outputs | 5 x RJ45 ports, 10/100/1000 Mbps |
| Dimensions | 7.00 x 6.00 x 1.25 in |
| Weight | 0.5 lb |
| Has written warranty | No |
| Has nrtl listing certification | N |
